SparkFun DE9 Breakouts (Male and Female)

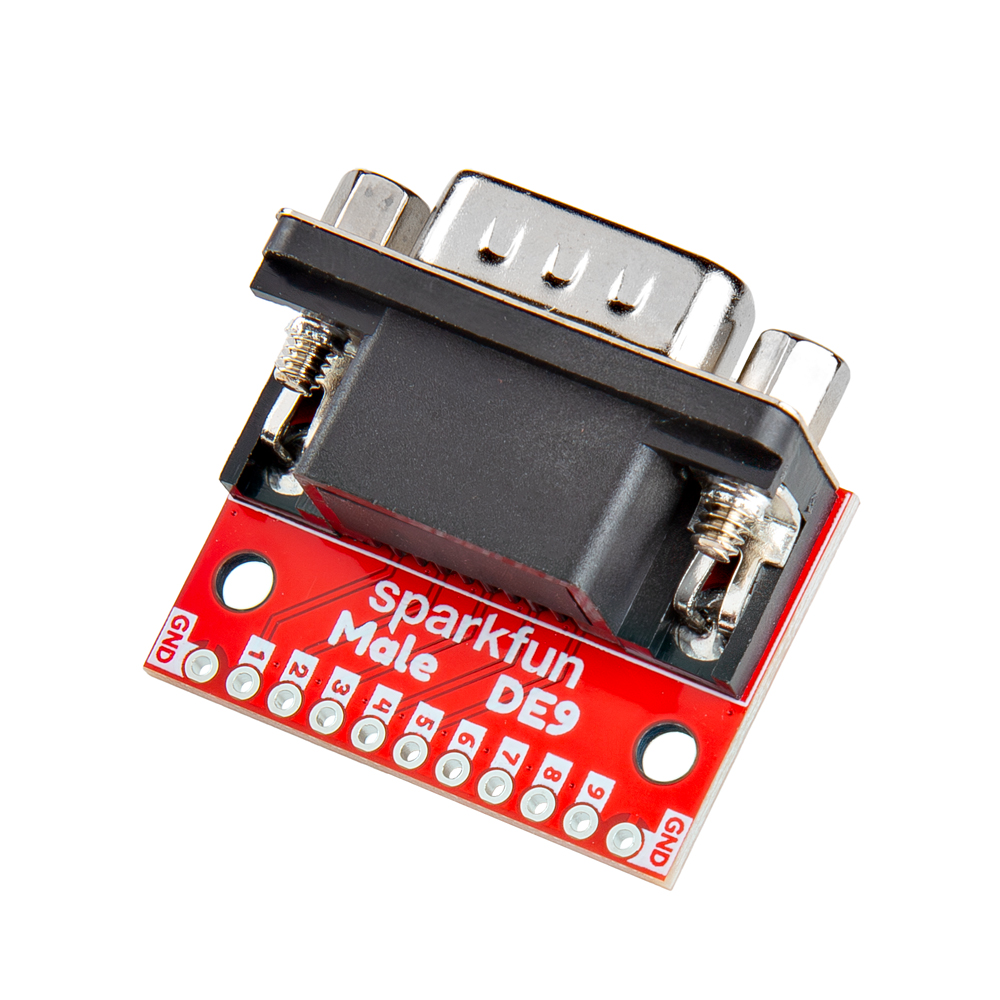

SparkFun DE9 Breakout - Male (BOB-29195)	SparkFun DE9 Breakout - Female (BOB-29196)

The SparkFun DE9 Breakout - Male and DE9 Breakout - Female are simple breakout boards for a DE9 (commonly referred to as DB9) type connectors. These breakouts route all 9 pins from the connector, along with a pair of ground pins, to a 0.1"-spaced plated through-hole header. The boards also have two mounting holes that fit a 4-40 screw.

Repository Contents

• /Hardware - Eagle design files (.brd, .sch)

Product Versions

• BOB-29195 - SparkFun DE9 Breakout - Male Initial Release
• BOB-29196 - SparkFun DE9 Breakout - Female Initial Release

License Information

This product is open source!

Please review the LICENSE.md file for license information.

If you have any questions or concerns on licensing, please contact technical support on our SparkFun forums.

Distributed as-is; no warranty is given.

• Your friends at SparkFun.
