ConsoleCanvas

ConsoleCanvas emulates a canvas which makes it possible to "draw" on any console terminal.

Basic shapes

3D Cube

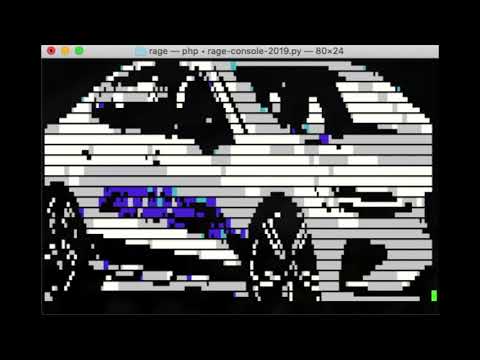

The -*r A g E*- Python Console demo is written using the ConsoleCanvas python class. Click on the image below to see the demo running !

Try it!

1. Clone this repo
2. Run example script, for example:

php src/examples/basic.php

PHP Installation

composer.json

"require": {
    "gii/consolecanvas": "dev-master"
},
"repositories": [
    {
        "type": "vcs",
        "url":  "https://github.com/githubjonas/ConsoleCanvas"
    }
]

PHP Usage

use GII\ConsoleCanvas;

// Instance a new canvas
$canvas = new ConsoleCanvas();

// Clears the screen
$canvas->clear();

// Sets pen color to beautiful magenta
$canvas->setColor(ConsoleCanvas::COLOR_MAGENTA);

// Draws a circle with radius 5 pixels at position x=10 and y=10 and with
// aspect ratio set to 2, which usually gives a quite round circle, depending
// on terminal.
$canvas->circle(10, 10, 5, 2);


// Draws a line from point x=50, y=5 to point x=10, y=10
$canvas->line(50, 5, 10, 10);

Example: basic drawing

$canvas = new ConsoleCanvas();

$w = $canvas->width();
$h = $canvas->height();

$canvas->clear();
$canvas->setColor(ConsoleCanvas::COLOR_RED);
$canvas->line(40, 10, 10, 30);
$canvas->setColor(ConsoleCanvas::COLOR_GREEN);
$canvas->line(10, 30, 50, 40);
$canvas->setColor(ConsoleCanvas::COLOR_BLUE);
$canvas->line(50, 40, 40, 10);

$canvas->setColor(ConsoleCanvas::COLOR_CYAN);
$canvas->circle(80, 20, 15, 2);

$canvas->clearColor();
$canvas->moveCursor(0, $h - 1);

Python usage

from GII.ConsoleCanvas import ConsoleCanvas

# Instance
canvas = ConsoleCanvas()

# Clear screen
canvas.clear()

# Create a 'ball' object
ball = ConsoleCanvas(20, 10, False)

# Set color on ball and draw it
ball.setColor(canvas.COLOR_GREEN)
ball.circle(10, 5, 5, 2)

# copy two balls to main canvas
canvas.blit(5, 5, ball)
canvas.blit(25, 25, ball)

Usage

Construction

argument	type	default	description
cols	int	system width	number of terminal columns
rows	int	system height	number of terminal rows
output	bool	true	if set to false, canvas is not echoed

Constants

Colors

name	description
COLOR_BLACK	Black color
COLOR_RED	Red color
COLOR_GREEN	Green color
COLOR_BROWN	Brown color
COLOR_BLUE	Blue color
COLOR_MAGENTA	Magenta color
COLOR_CYAN	Cyan color
COLOR_GREY	Grey color
COLOR_WHITE	White color (caution! not really "white" but terminal default foreground color)

Methods

blit(x, y, canvas, options)

Copy [a part of] one canvas onto another.

argument	type	default	description
x	int		horizontal start position
y	int		vertical start position
canvas	ConsoleCanvas		object to copy into this
options	dict/array	{}	options

options

argument	type	default	description
width	int	canvas width	horizontal start position
height	int	canvas height	vertical start position
xOffset	int	0	x offset on source object
yOffset	int	0	y offset on source object
method	BINARY FIELD	BLIT_DEFAULT	Add BLIT_SAFE to safe copy (slower). Add BLIT_MERGE to merge data into destination.

return

void

clear()

Clears the screen.

return

void

clearColor()

Clears pen color back to terminal default foreground color.

return

void

clone()

Clone canvas.

return

ConsoleCanvas clone

height()

Get height of canvas.

return

int Height of canvas in pixels

fillRect(x1, y1, x2, y2, x3, y3, x4, y4)

NOTE! EXPERIMENTAL, PHP ONLY. Draws a filled rectangle.

argument	type	default	description
x1	int		upper left horizontal position
y1	int		upper left vertical position
x2	int		upper right horizontal position
y2	int		upper right vertical position
x3	int		lower right horizontal position
y3	int		lower right vertical position
x4	int		lower left horizontal position
y4	int		lower left vertical position

return

void

line(x1, y1, x2, y2)

Draw a line from one point to another point on the canvas.

argument	type	default	description
x1	int		horizontal start position
y1	int		vertical start position
x2	int		horizontal end position
y2	int		vertical end position

return

void

setColor(color)

Sets pen color to selected color.

argument	type	default	description
color	string		must be one of the predefined color constants

return

void

width()

Get width of canvas

return

int Width of canvas in pixels
