Extended-Bottom-Navigation-View

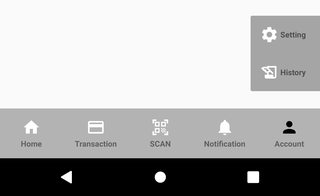

Android Custom View for Bottom Navigation (Using ConstraintLayout as baseLayout) with customizable sub-menu content.

Setup

1. Add it in your root build.gradle

allprojects {
	repositories {
		...
		maven { url 'https://jitpack.io' }
	}
}

2. Add the dependency

dependencies {
	implementation 'com.github.dargoz:Extended-Bottom-Navigation-View:Tag'
}

Usage

supported attributes with default values:

<com.dargoz.extendedbottomnavigationview.BottomNavigationBar
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"/>

NOTE: Due to better user experience for bottom navigation, this View only supports a maximum of 5 main content.

Attrs	Related methods	Default value
menu	N/A	N/A
menuBackgroundColor	N/A	@color/R.color.default_background_color
menuItemTextColor	N/A	@color/R.color.default_color_state
highlightMenuPosition	setHighlightMenuPosition	-1
subMenu	N/A	unset
subMenuType	N/A	1
subMenuBackground	N/A	@color/R.color.default_sub_menu_background_color_state
subMenuTextColor	setSubMenuTextColor	``

Public Methods

Return type	Method name
void	addSubMenu(int menuResId, int indexRootMenu, SubMenuOrientation orientation) add additional sub menu content to spesific main menu item position.
Menu	getMenu()
ImageView	getMenuBackground() return bottomNavBar menu background container.
LinearLayout	getMenuChildAt(int position) return the layout container of given main menu item position.
void	setHighlightMenuPosition(int position) set spesific main menu item position as highlighted menu by giving extra paddingBottom on it.
void	setMenuOnClickListener(MenuOnClickListener menuOnClickListener) set bottom navigation main menu callback action on user click.
void	setSelectedMenuItem(int itemIndex) set the given main menu position as selected. this method will make icon and title changes their selection state value as true (also known as android:state_selected="true" if using custom drawable selector state).
void	setSubMenuOnClickListener(MenuOnClickListener subMenuOnClickListener)
void	setSubMenuTextColor(int colorResId) set color or colorState of sub menu title text.
void	showSubMenu(int position, boolean visibility) set sub menu visibility for given sub menu position. true: set view to VISIBLE. false: set view to GONE.
void	replaceMenuTextToImage(int position, int imageResourceId) replace menu titleText for given menu position with given ImageResource.

Set Menu List item

1. create .xml menu resource inside menu resource directory. (res\menu\<your_resource_name>.xml)
   Example:

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android">
    <item
        android:title="@string/home_title_text"
        android:icon="@drawable/icon_home"
        />
    <item
        android:title="@string/transaction_title_text"
        android:icon="@drawable/icon_credit"
        />
    <item
        android:title="@string/scan_title_text"
        android:icon="@drawable/baseline_home_black_24"
        />
    <item
        android:title="@string/notification_title_text"
        android:icon="@drawable/icon_notification"
        />
    <item
        android:title="@string/account_title_text"
        android:icon="@drawable/icon_person"
        />
</menu>

2. add your menu resource as input to app:menu BottomNavigationBar attribute in layout.xml

<com.dargoz.extendedbottomnavigationview.BottomNavigationBar
        android:id="@+id/bottom_navigation_menu"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        app:menu="@menu/bottom_navigation_menu_list"/>

Add Sub Menu

bottomNavBar.addSubMenu(R.menu.sub_menu_navigation_list, 4, SubMenuOrientation.VERTICAL)

this method consist 3 input parameters:

• menuResId : required menu type of resources in menu resource directory.
• indexRootMenu : index of menu to add the sub menu content.
• orientation : sub menu container orientation style. you can choose between HORIZONTAL and VERTICAL.

Set Menu Click Listener

Use setMenuOnClickListener to receive callback action from clicked menu context.

bottomNavBar.setMenuOnClickListener { menu, position ->
         bottomNavBar.setSelectedMenuItem(position)
         //Your code here
}

this method consist 2 parameters:

• menu : return Menu object that contain menu title and menu icon value.
• position : return integer value of clicked menu position. (start from 0)

Set SubMenu Click Listener

bottomNavBar.setSubMenuOnClickListener { menu, position ->
            //Your code here
}

License

Copyright 2020 Davin Reinaldo Gozali

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

   http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.
