Smeter - Smart Meter

Smeter is an arduino project which uses an opitcal sensor to monitor the consumption and sends them to a bluemix server using MQTT and WIFI.

Hardware requirements

• Arduino and USB cable
• CNY70 Reflective Optical Sensor
• ESP8266 Wifi Module

Hardware setup

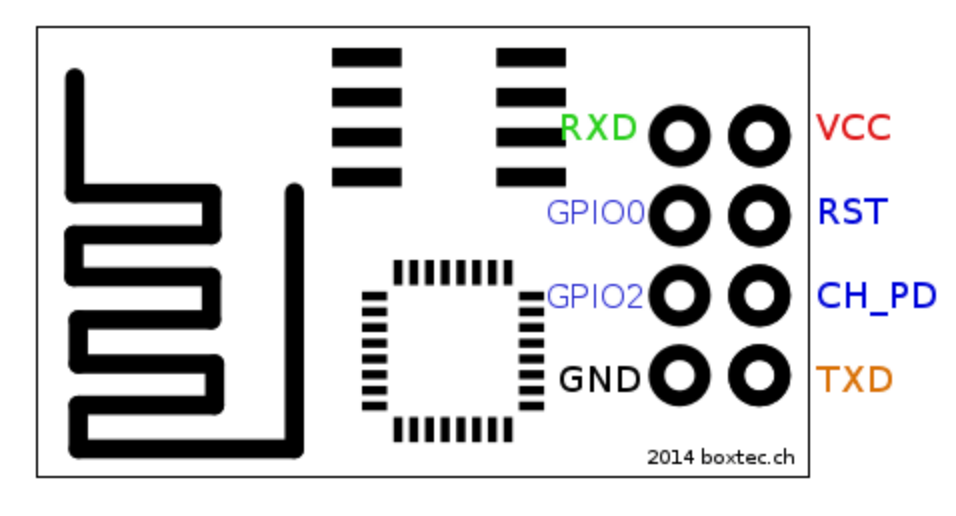

ESP8266 Sensor pin to pin connection:

---

  Esp8266 | Arduino
       RX | RX
       TX | TX
      GND | GND
      VCC | 5v
    CH_PD | 5v
   GPIO 0 | None
   GPIO 2 | None

https://cdn-images-1.medium.com/max/1600/1*IfHONRU0cWu3g9wnfI_GjQ.png

---

---

CNY70 Sensor pin to pin connection:

Circuit diagram:

---

     3V3         GND
      |           |
    White       Green      Colors shown are arbitrary wire colors
      |           |        that can be used to keep things straight
    |-o----   ----o-|
    |      ---      |      Looking down on CNY70 with
    |               |        - emitter LED on left
    |   O       O   |        - detector phototransistor on right
    |               |        - pins on bottom connect as shown
    |      ---      |
    |-o----   ----o-|      Lettering is on right vertical face
      |           |          with indents as shown
      |           |
      |           ------ Pin 5
      |           |
   Purple        Red
      |           |
   100 ohm      100 k Ohm
      |           |
     GND         3V3

Arduino note: May use 5V instead of 3V3, this will increase the range significantly.
