[Perf] Windows/x64: 12 Regressions on 8/15/2024 12:39:36 AM

[performanceautofiler]

Run Information

Name	Value
Architecture	x64
OS	Windows 10.0.22631
Queue	ViperWindows
Baseline	0fbd81404d1f211572387498474063bc6f407f0f
Compare	bfffd58eeb204d368989038a19786bff86000b19
Diff	Diff
Configs	CompilationMode:tiered, RunKind:micro

Regressions in System.Linq.Tests.Perf_Enumerable

Benchmark	Baseline	Test	Test/Base	Test Quality	Edge Detector	Baseline IR	Compare IR	IR Ratio
WhereFirst_LastElementMatches - Duration of single invocation 📝 - Benchmark Source ADX - Test Multi Config Graph	54.14 ns	65.46 ns	1.21	0.35	False

Test Report

Repro

General Docs link: https://github.com/dotnet/performance/blob/main/docs/benchmarking-workflow-dotnet-runtime.md

git clone https://github.com/dotnet/performance.git
py .\performance\scripts\benchmarks_ci.py -f net8.0 --filter 'System.Linq.Tests.Perf_Enumerable*'

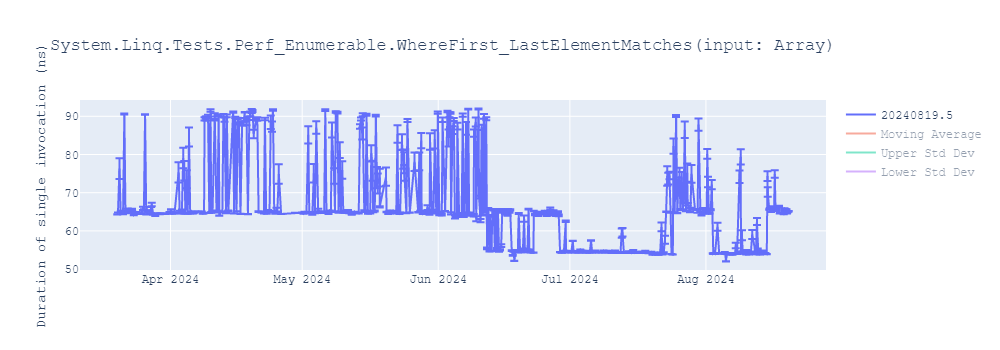

System.Linq.Tests.Perf_Enumerable.WhereFirst_LastElementMatches(input: Array)

ETL Files

Histogram

JIT Disasms

Docs

Profiling workflow for dotnet/runtime repository
Benchmarking workflow for dotnet/runtime repository

---

Run Information

Name	Value
Architecture	x64
OS	Windows 10.0.22631
Queue	ViperWindows
Baseline	0fbd81404d1f211572387498474063bc6f407f0f
Compare	bfffd58eeb204d368989038a19786bff86000b19
Diff	Diff
Configs	CompilationMode:tiered, RunKind:micro

Regressions in System.Numerics.Tests.Perf_VectorConvert

Benchmark	Baseline	Test	Test/Base	Test Quality	Edge Detector	Baseline IR	Compare IR	IR Ratio
Convert_double_long - Duration of single invocation 📝 - Benchmark Source ADX - Test Multi Config Graph	473.78 ns	546.54 ns	1.15	0.12	False

Test Report

Repro

General Docs link: https://github.com/dotnet/performance/blob/main/docs/benchmarking-workflow-dotnet-runtime.md

git clone https://github.com/dotnet/performance.git
py .\performance\scripts\benchmarks_ci.py -f net8.0 --filter 'System.Numerics.Tests.Perf_VectorConvert*'

System.Numerics.Tests.Perf_VectorConvert.Convert_double_long

ETL Files

Histogram

JIT Disasms

Docs

Profiling workflow for dotnet/runtime repository
Benchmarking workflow for dotnet/runtime repository

---

Run Information

Name	Value
Architecture	x64
OS	Windows 10.0.22631
Queue	ViperWindows
Baseline	0fbd81404d1f211572387498474063bc6f407f0f
Compare	bfffd58eeb204d368989038a19786bff86000b19
Diff	Diff
Configs	CompilationMode:tiered, RunKind:micro

Regressions in System.Text.RegularExpressions.Tests.Perf_Regex_Industry_Leipzig

Benchmark	Baseline	Test	Test/Base	Test Quality	Edge Detector	Baseline IR	Compare IR	IR Ratio
Count - Duration of single invocation 📝 - Benchmark Source ADX - Test Multi Config Graph	1.57 ms	1.67 ms	1.06	0.00	True
Count - Duration of single invocation 📝 - Benchmark Source ADX - Test Multi Config Graph	12.95 ms	13.60 ms	1.05	0.00	True
Count - Duration of single invocation 📝 - Benchmark Source ADX - Test Multi Config Graph	3.68 ms	4.01 ms	1.09	0.02	False

Test Report

Repro

General Docs link: https://github.com/dotnet/performance/blob/main/docs/benchmarking-workflow-dotnet-runtime.md

git clone https://github.com/dotnet/performance.git
py .\performance\scripts\benchmarks_ci.py -f net8.0 --filter 'System.Text.RegularExpressions.Tests.Perf_Regex_Industry_Leipzig*'

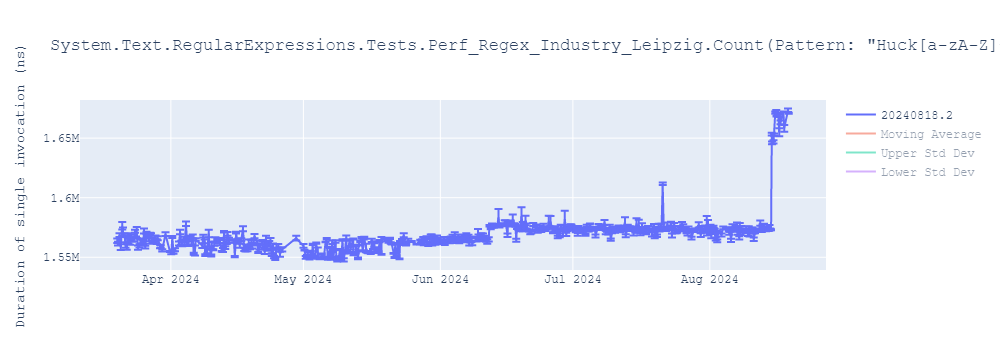

System.Text.RegularExpressions.Tests.Perf_Regex_Industry_Leipzig.Count(Pattern: "Huck[a-zA-Z]+|Saw[a-zA-Z]+", Options: Compiled)

ETL Files

Histogram

JIT Disasms

System.Text.RegularExpressions.Tests.Perf_Regex_Industry_Leipzig.Count(Pattern: "([A-Za-z]awyer|[A-Za-z]inn)\s", Options: Compiled)

ETL Files

Histogram

JIT Disasms

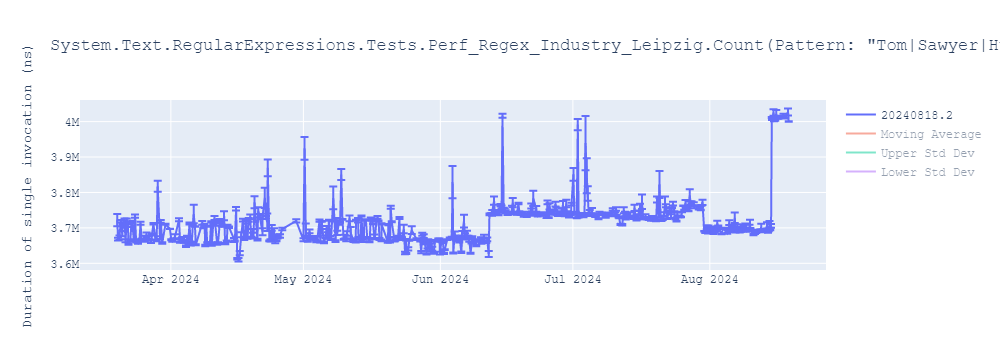

System.Text.RegularExpressions.Tests.Perf_Regex_Industry_Leipzig.Count(Pattern: "Tom|Sawyer|Huckleberry|Finn", Options: NonBacktracking)

ETL Files

Histogram

JIT Disasms

Docs

Profiling workflow for dotnet/runtime repository
Benchmarking workflow for dotnet/runtime repository

---

Run Information

Name	Value
Architecture	x64
OS	Windows 10.0.22631
Queue	ViperWindows
Baseline	0fbd81404d1f211572387498474063bc6f407f0f
Compare	bfffd58eeb204d368989038a19786bff86000b19
Diff	Diff
Configs	CompilationMode:tiered, RunKind:micro

Regressions in System.Tests.Perf_String

Benchmark	Baseline	Test	Test/Base	Test Quality	Edge Detector	Baseline IR	Compare IR	IR Ratio
IndexerCheckBoundCheckHoist - Duration of single invocation 📝 - Benchmark Source ADX - Test Multi Config Graph	23.52 ns	38.56 ns	1.64	0.02	False
IndexerCheckLengthHoisting - Duration of single invocation 📝 - Benchmark Source ADX - Test Multi Config Graph	23.51 ns	38.57 ns	1.64	0.02	False

Test Report

Repro

General Docs link: https://github.com/dotnet/performance/blob/main/docs/benchmarking-workflow-dotnet-runtime.md

git clone https://github.com/dotnet/performance.git
py .\performance\scripts\benchmarks_ci.py -f net8.0 --filter 'System.Tests.Perf_String*'

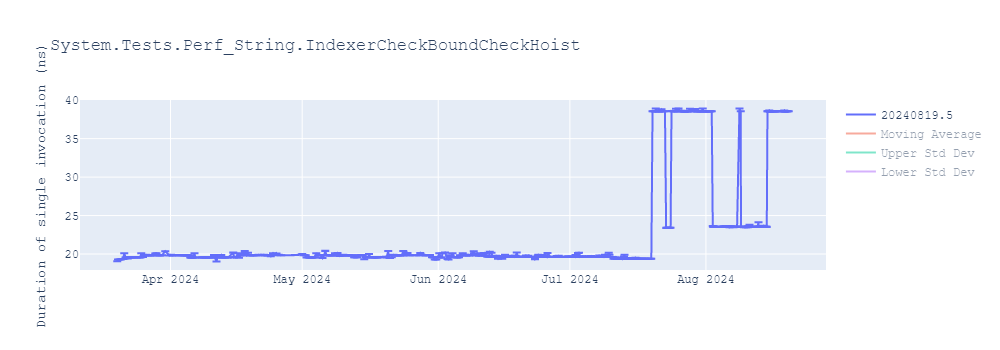

System.Tests.Perf_String.IndexerCheckBoundCheckHoist

ETL Files

Histogram

JIT Disasms

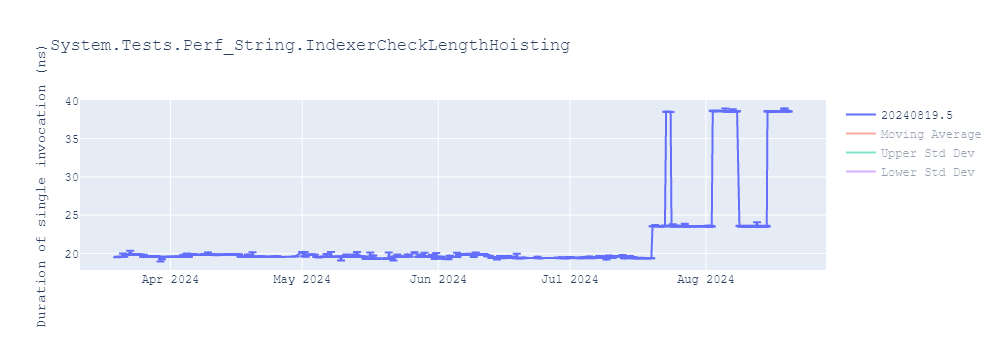

System.Tests.Perf_String.IndexerCheckLengthHoisting

ETL Files

Histogram

JIT Disasms

Docs

Profiling workflow for dotnet/runtime repository
Benchmarking workflow for dotnet/runtime repository

---

Run Information

Name	Value
Architecture	x64
OS	Windows 10.0.22631
Queue	ViperWindows
Baseline	0fbd81404d1f211572387498474063bc6f407f0f
Compare	bfffd58eeb204d368989038a19786bff86000b19
Diff	Diff
Configs	CompilationMode:tiered, RunKind:micro

Regressions in Loops.StrengthReduction

Benchmark	Baseline	Test	Test/Base	Test Quality	Edge Detector	Baseline IR	Compare IR	IR Ratio
SumS29Span - Duration of single invocation 📝 - Benchmark Source ADX - Test Multi Config Graph	4.29 μs	5.43 μs	1.27	0.04	False
SumS8Span - Duration of single invocation 📝 - Benchmark Source ADX - Test Multi Config Graph	4.33 μs	5.43 μs	1.25	0.04	False
SumLongsSpan - Duration of single invocation 📝 - Benchmark Source ADX - Test Multi Config Graph	4.31 μs	5.42 μs	1.26	0.04	False

Test Report

Repro

General Docs link: https://github.com/dotnet/performance/blob/main/docs/benchmarking-workflow-dotnet-runtime.md

git clone https://github.com/dotnet/performance.git
py .\performance\scripts\benchmarks_ci.py -f net8.0 --filter 'Loops.StrengthReduction*'

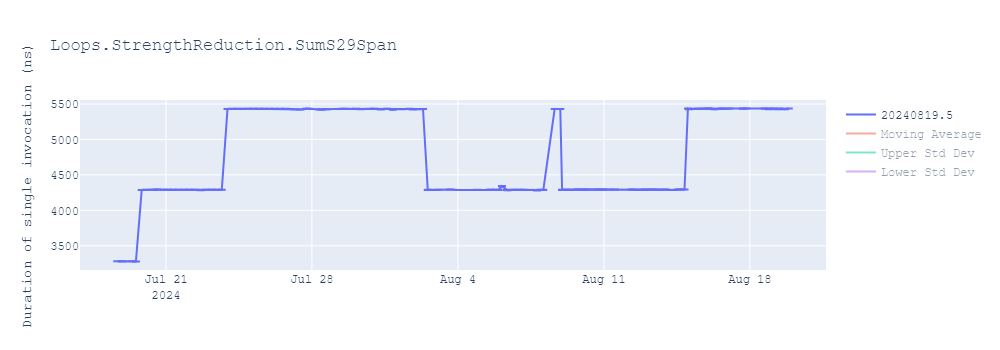

Loops.StrengthReduction.SumS29Span

ETL Files

Histogram

JIT Disasms

Loops.StrengthReduction.SumS8Span

ETL Files

Histogram

JIT Disasms

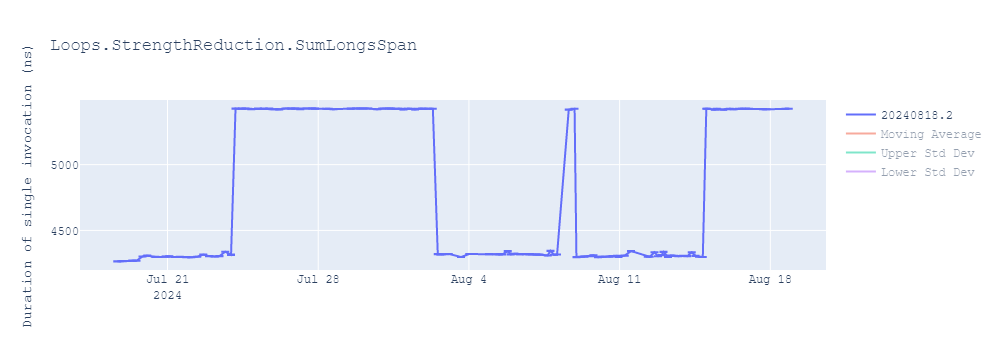

Loops.StrengthReduction.SumLongsSpan

ETL Files

Histogram

JIT Disasms

Docs

Profiling workflow for dotnet/runtime repository
Benchmarking workflow for dotnet/runtime repository

---

Run Information

Name	Value
Architecture	x64
OS	Windows 10.0.22631
Queue	ViperWindows
Baseline	0fbd81404d1f211572387498474063bc6f407f0f
Compare	bfffd58eeb204d368989038a19786bff86000b19
Diff	Diff
Configs	CompilationMode:tiered, RunKind:micro

Regressions in System.Collections.IterateFor<Int32>

Benchmark	Baseline	Test	Test/Base	Test Quality	Edge Detector	Baseline IR	Compare IR	IR Ratio
ImmutableList - Duration of single invocation 📝 - Benchmark Source ADX - Test Multi Config Graph	3.41 μs	3.68 μs	1.08	0.26	False

Test Report

Repro

General Docs link: https://github.com/dotnet/performance/blob/main/docs/benchmarking-workflow-dotnet-runtime.md

git clone https://github.com/dotnet/performance.git
py .\performance\scripts\benchmarks_ci.py -f net8.0 --filter 'System.Collections.IterateFor<Int32>*'

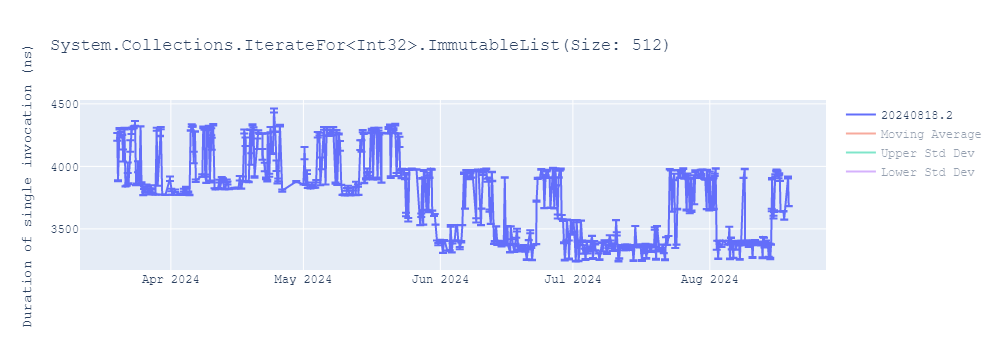

System.Collections.IterateFor<Int32>.ImmutableList(Size: 512)

ETL Files

Histogram

JIT Disasms

Docs

Profiling workflow for dotnet/runtime repository
Benchmarking workflow for dotnet/runtime repository

---

Run Information

Name	Value
Architecture	x64
OS	Windows 10.0.22631
Queue	ViperWindows
Baseline	0fbd81404d1f211572387498474063bc6f407f0f
Compare	bfffd58eeb204d368989038a19786bff86000b19
Diff	Diff
Configs	CompilationMode:tiered, RunKind:micro

Regressions in System.Globalization.Tests.StringSearch

Benchmark	Baseline	Test	Test/Base	Test Quality	Edge Detector	Baseline IR	Compare IR	IR Ratio
LastIndexOf_Word_NotFound - Duration of single invocation 📝 - Benchmark Source ADX - Test Multi Config Graph	442.54 ns	616.75 ns	1.39	0.04	False

Test Report

Repro

General Docs link: https://github.com/dotnet/performance/blob/main/docs/benchmarking-workflow-dotnet-runtime.md

git clone https://github.com/dotnet/performance.git
py .\performance\scripts\benchmarks_ci.py -f net8.0 --filter 'System.Globalization.Tests.StringSearch*'

System.Globalization.Tests.StringSearch.LastIndexOf_Word_NotFound(Options: (en-US, OrdinalIgnoreCase, False))

ETL Files

Histogram

JIT Disasms

Docs

Profiling workflow for dotnet/runtime repository
Benchmarking workflow for dotnet/runtime repository

[DrewScoggins]

Could be related to #106218

[DrewScoggins]

@Ruihan-Yin

[dotnet-policy-service]

Tagging subscribers to this area: @JulieLeeMSFT, @jakobbotsch
See info in area-owners.md if you want to be subscribed.

[DeepakRajendrakumaran]

@Ruihan-Yin

Ruihan is OOO for the week. So, I took a look at this but unfortunately I'm not able to reproduce this locally

The steps I took are following

Step 1 : Checked out to the base commit mentioned(up to 0fbd814) and build repo using
build.cmd -c Release

Step 2 : Checked out to the diff commit mentioned(up to bfffd58) and build repo using
build.cmd -c Release

Step3 : Update performance repo and run tests using following command
performance\src\benchmarks\micro>dotnet run -c Release -f net9.0 --filter "System.Linq.Tests.Perf_Enumerable*" --coreRun "<runtime_repo>\artifacts_106706_base\bin\testhost\net9.0-windows-Release-x64\shared\Microsoft.NETCore.App\9.0.0\corerun.exe" "<runtime_repo>\artifacts\bin\testhost\net9.0-windows-Release-x64\shared\Microsoft.NETCore.App\9.0.0\corerun.exe"

I did the same for Loops.StrengthReduction* and System.Numerics.Tests.Perf_VectorConvert* as well. But the specified tests do not show any regression.

I do have a few questions though

1. What machine were these tests run on? I'm running on a cascade lakes machine
2. Do I need to set any env variables before running the tests?
3. Have you done a binary search and verified it's this commit?

[tannergooding]

What machine were these tests run on? I'm running on a cascade lakes machine
Do I need to set any env variables before running the tests?

@DrewScoggins, could you share which CPU this is using in particular?

Have you done a binary search and verified it's this commit?

No confirmation was done to isolate the exact commit or check disassembly, triage typically just calls out the most likely commit from the range surrounding the regression.

-- In this particular case, I don't think there's much to do here outside validating which commit did introduce the regression. This was a correctness fix and we're late in the cycle, so at best we could confirm that it was #106218 and see if there's some optimization we could do in .NET 10 to restore the codegen to what it was. Perhaps some cases can still use embedded broadcast/mask or have an alternative sequence we could emit for example.

[AndyAyersMS]

Viper would be an AMD Zen4, right?

[DrewScoggins]

Here is a link to the page where we keep some basic hardware information on all of our queues. https://perfsupport.azurewebsites.net/hw-spec

[kunalspathak]

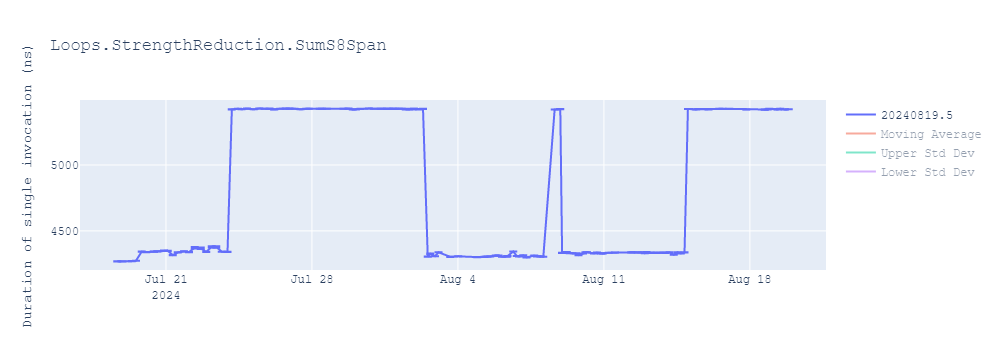

I am guessing this has something to do with dependencies updates...When it regressed, we had b1968e7...cef3898 that contained #106261. After a week, with #106421 in f402418...df2d213, the regression disappeared:
