+## 思考
+[Laravel-Event-Sourcing](https://spatie.be/docs/laravel-event-sourcing/v4/introduction) 中 StoredEvent 怎么保存 而 Projector 和 Reactor 又是怎么样监听到对应的事件的？
+## 案例
+用户取消订单,需要触发 `BookingCancelled` 事件，我们需要在 `Projector` 监听到 `BookingCancelled` 后改变订单状态。同时需要在 `Reactor` 发送一封邮件给用户。
+* 我们有一个 AggregateRoot  `App\Bookings\AggregateRoot\BookingRoot`。里面有个取消订单的方法 cancle 代码如下：
+```php
+class BookingRoot extends AggregateRoot
+    public function cancel(): self
+    {
+        $this->recordThat(
+            new BookingCancelled(
+                $this->userId,
+            )
+        );
+        return $this;
+    }
+}
+```
+
+* 我们有一个 Projector  `App\Bookings\Projector\BookingsProjector` 。他是同步的，代码如下：
+```php
+class BookingsProjector extends Projector
+{
+    public function onBookingCancelled(
+        StoredEvent $storedEvent,
+        BookingCancelled $event,
+        string $aggregateUuid
+    ) {
+        $projection         = ProjectionBooking::query()
+            ->where('booking_aggregate_id', $aggregateUuid)
+            ->first();
+        $projection->status = BookingStatus::STATUS_CANCELLED;
+        $projection->cancelled = $storedEvent->created_at;
+        $projection->save();
+    }
+}
+```
+* 我们有一个 Reactor `App\Bookings\Reactor\NotificationReactor`。他是异步的,代码如下：
+```php
+class NotificationReactor extends Reactor implements ShouldQueue
+{
+    public function onBookingCancelled(BookingCancelled $event, StoredEvent $storedEvent)
+    {
+        $user = User::query()->findOrFail($event->userId);
+        Notification::send($user, new BookingCancelledNotification('订单取消'));
+    }
+```
+
+## 源码分析
+当我们执行如下代码：
+```php
+BookingRoot::retrieve($bookingAggregateId)->cancel()->persist();
+```
+*  ##### `Spatie\EventSourcing\AggregateRoots\AggregateRoot` 的 persist 方法（将事件保存到数据库）：
+```php
+    public function persist()
+    {
+        $storedEvents = $this->persistWithoutApplyingToEventHandlers();
+
+        $storedEvents->each(fn (StoredEvent $storedEvent) => $storedEvent->handleForAggregateRoot());
+
+        $this->aggregateVersionAfterReconstitution = $this->aggregateVersion;
+
+        return $this;
+    }
+
+    protected function persistWithoutApplyingToEventHandlers(): LazyCollection
+    {
+        $this->ensureNoOtherEventsHaveBeenPersisted();
+
+        $storedEvents = $this
+            ->getStoredEventRepository()
+            ->persistMany(
+                $this->getAndClearRecordedEvents(),
+                $this->uuid(),
+                $this->aggregateVersion,
+            );
+
+        return $storedEvents;
+    }
+```
+在代码 `$this->persistWithoutApplyingToEventHandlers` 会调用 `Spatie\EventSourcing\StoredEvents\Repositories\EloquentStoredEventRepository` 的 persistMany 再循环要保存的事件通过 persist 保存到 `Spatie\EventSourcing\StoredEvents\Models\EloquentStoredEvent` 最后存到数据库表 stored_events 中。`Spatie\EventSourcing\StoredEvents\Repositories\EloquentStoredEventRepository` 代码如下:
+```php
+class EloquentStoredEventRepository implements StoredEventRepository
+{
+    public function persistMany(array $events, string $uuid = null, int $aggregateVersion = null): LazyCollection
+    {
+        $storedEvents = [];
+        foreach ($events as $event) {
+            $storedEvents[] = $this->persist($event, $uuid, $aggregateVersion);
+        }
+
+        return new LazyCollection($storedEvents);
+    }
+
+    public function persist(ShouldBeStored $event, string $uuid = null, int $aggregateVersion = null): StoredEvent
+    {
+        /** @var EloquentStoredEvent $eloquentStoredEvent */
+        $eloquentStoredEvent = new $this->storedEventModel();
+
+        $eloquentStoredEvent->setOriginalEvent($event);
+
+        $eloquentStoredEvent->setRawAttributes([
+            'event_properties' => app(EventSerializer::class)->serialize(clone $event),
+            'aggregate_uuid' => $uuid,
+            'aggregate_version' => $aggregateVersion,
+            'event_class' => $this->getEventClass(get_class($event)),
+            'meta_data' => json_encode($event->metaData()),
+            'created_at' => Carbon::now(),
+        ]);
+
+        $eloquentStoredEvent->save();
+
+        return $eloquentStoredEvent->toStoredEvent();
+    }
+```
+*  ##### 事件监听代码逻辑：
+    ```php
+$storedEvents = $this->persistWithoutApplyingToEventHandlers();
+   ```
+返回的是 item 为  `Spatie\EventSourcing\StoredEvents\StoredEvent` 的 `LazyCollection`
+第二步：
+```php
+     $storedEvents->each(fn (StoredEvent $storedEvent) => $storedEvent->handleForAggregateRoot());
+```
+循环调用每一个 `Spatie\EventSourcing\StoredEvents\StoredEvent` 的 `handleForAggregateRoot` 方法。
+```php
+namespace Spatie\EventSourcing\StoredEvents;
+class StoredEvent implements Arrayable
+{
+
+    public function handleForAggregateRoot(): void
+    {
+        $this->handle();
+
+        if (! config('event-sourcing.dispatch_events_from_aggregate_roots', false)) {
+            return;
+        }
+
+        $this->event->firedFromAggregateRoot = true;
+        event($this->event);
+    }
+
+    public function handle()
+    {
+        // Projector 和 Reactor 如果是同步 那么在 Projectionist 的 handleWithSyncEventHandlers 方法处理
+        Projectionist::handleWithSyncEventHandlers($this);
+
+        if (method_exists($this->event, 'tags')) {
+            $tags = $this->event->tags();
+        }
+
+        if (! $this->shouldDispatchJob()) {
+            return;
+        }
+        $storedEventJob = call_user_func(
+            [config('event-sourcing.stored_event_job'), 'createForEvent'],
+            $this,
+            $tags ?? []
+        );
+        // Projector 和 Reactor 如果是异步就把 Spatie\EventSourcing\StoredEvents\HandleStoredEventJob 推送到队列
+        dispatch($storedEventJob->onQueue($this->getQueueName()));
+    }
+```
+上面代码中的 $this->event 为 `App\Bookings\Event\BookingCancelled`
+$storedEventJob 为 `Spatie\EventSourcing\StoredEvents\HandleStoredEventJob` 属性 $storedEvent 为代码中的 $this。
+
+*  ##### Projector 和 Reactor 同步监听逻辑
+上面代码中同步调用代码：
+ ```php
+ Projectionist::handleWithSyncEventHandlers($this);
+ ```
+我们找到 `Spatie\EventSourcing\Projectionist` 的 handleWithSyncEventHandlers
+ ```php
+ namespace Spatie\EventSourcing;
+ use Spatie\EventSourcing\EventHandlers\EventHandlerCollection;
+ class Projectionist
+{
+    private EventHandlerCollection $projectors;
+
+    private EventHandlerCollection $reactors;
+
+    private bool $catchExceptions;
+
+    private bool $replayChunkSize;
+
+    private bool $isProjecting = false;
+
+    private bool $isReplaying = false;
+
+    public function __construct(array $config)
+    {
+        $this->projectors = new EventHandlerCollection();
+        $this->reactors = new EventHandlerCollection();
+
+        $this->catchExceptions = $config['catch_exceptions'];
+        $this->replayChunkSize = $config['replay_chunk_size'];
+    }
+    public function handleWithSyncEventHandlers(StoredEvent $storedEvent): void
+    {
+        $projectors = $this->projectors
+            ->forEvent($storedEvent)
+            ->syncEventHandlers();
+
+        $this->applyStoredEventToProjectors($storedEvent, $projectors);
+
+        $reactors = $this->reactors
+            ->forEvent($storedEvent)
+            ->syncEventHandlers();
+
+        $this->applyStoredEventToReactors($storedEvent, $reactors);
+    }
+}
+ ```
+上面代码中的 `handleWithSyncEventHandlers ` 方法其实是通过 `EventHandlerCollection` 筛选出同步的 Projector 和 Reactor。
+如果是 Projector 执行 `$this->applyStoredEventToProjectors($storedEvent, $projectors)`，
+如果是 Reactor 执行 `$this->applyStoredEventToReactors(StoredEvent $storedEvent, Collection $reactors):`
+ ```php
+   private function applyStoredEventToProjectors(StoredEvent $storedEvent, Collection $projectors): void
+    {
+        $this->isProjecting = true;
+
+        foreach ($projectors as $projector) {
+            $this->callEventHandler($projector, $storedEvent);
+        }
+
+        $this->isProjecting = false;
+    }
+
+    private function applyStoredEventToReactors(StoredEvent $storedEvent, Collection $reactors): void
+    {
+        foreach ($reactors as $reactor) {
+            $this->callEventHandler($reactor, $storedEvent);
+        }
+    }
+
+    private function callEventHandler(EventHandler $eventHandler, StoredEvent $storedEvent): bool
+    {
+        try {
+            $eventHandler->handle($storedEvent);
+        } catch (Exception $exception) {
+            if (! $this->catchExceptions) {
+                throw $exception;
+            }
+
+            $eventHandler->handleException($exception);
+
+            event(new EventHandlerFailedHandlingEvent($eventHandler, $storedEvent, $exception));
+
+            return false;
+        }
+
+        return true;
+    }
+ ```
+在上面的案例中到了这一步,我们触发的是 `$this->applyStoredEventToProjectors($storedEvent, $projectors)`。
+当调用 `$this->callEventHandler($projector, $storedEvent)` 时候：
+$projector 就是 `App\Bookings\Projector\BookingsProjector` ，
+$storedEvent 就是 `Spatie\EventSourcing\StoredEvents\StoredEvent` 它的属性 event 是 `App\Bookings\Event\BookingCancelled`。
+所以 `callEventHandler` 里面的 `$eventHandler->handle($storedEvent)` 可以理解为：`$projector->handle($storedEvent)`;
+其实就是调用了  `App\Bookings\Projector\BookingsProjector`  的 handle 方法。然后 handle 执行了`onBookingCancelled ` 方法。
+
+* ####  Projector 和 Reactor 异步监听逻辑
+上面代码中异步调用代码：
+ ```php
+ dispatch($storedEventJob->onQueue($this->getQueueName()));
+ ```
+Laravel 的监听最后通过 `Illuminate\Bus\Dispatcher`  执行方法 `dispatchNow($command, $handler = null)` 还是会调用  $storedEventJob 的 handler 方法。
+我们找到 `Spatie\EventSourcing\StoredEvents\HandleStoredEventJob`  的相关代码：
+ ```php
+ namespace Spatie\EventSourcing\StoredEvents;
+ class HandleStoredEventJob implements HandleDomainEventJob, ShouldQueue
+{
+    use InteractsWithQueue, Queueable, SerializesModels;
+
+    public StoredEvent $storedEvent;
+
+    public array $tags;
+
+    public function __construct(StoredEvent $storedEvent, array $tags)
+    {
+        $this->storedEvent = $storedEvent;
+
+        $this->tags = $tags;
+    }
+
+    public function handle(Projectionist $projectionist): void
+    {
+        $projectionist->handle($this->storedEvent);
+    }
+}
+ ```
+`handle` 继续调用了 `Spatie\EventSourcing\Projectionist` 的 `handle` 方法,代码如下：
+  ```php
+namespace Spatie\EventSourcing;
+class Projectionist
+{
+    public function handle(StoredEvent $storedEvent): void
+    {
+        $projectors = $this->projectors
+            ->forEvent($storedEvent)
+            ->asyncEventHandlers();
+
+        $this->applyStoredEventToProjectors(
+            $storedEvent,
+            $projectors
+        );
+
+        $reactors = $this->reactors
+            ->forEvent($storedEvent)
+            ->asyncEventHandlers();
+
+        $this->applyStoredEventToReactors(
+            $storedEvent,
+            $reactors
+        );
+    }
+}
+  ```
+到这里其实和同步的逻辑就一样了。 `handle` 和 `handleWithSyncEventHandlers` 的区别只是前者筛选的是异步的 Projector 和 Reactor。后者筛选的是同步的。然后走到
+`$this->applyStoredEventToProjectors($storedEvent, $projectors)` 以及
+`$this->applyStoredEventToReactors(StoredEvent $storedEvent, Collection $reactors)`。
+案例中：触发的就是`App\Bookings\Reactor\NotificationReactor` 的 `handle` 方法。然后 `handle` 执行了 `onBookingCancelled` 方法。
+
+

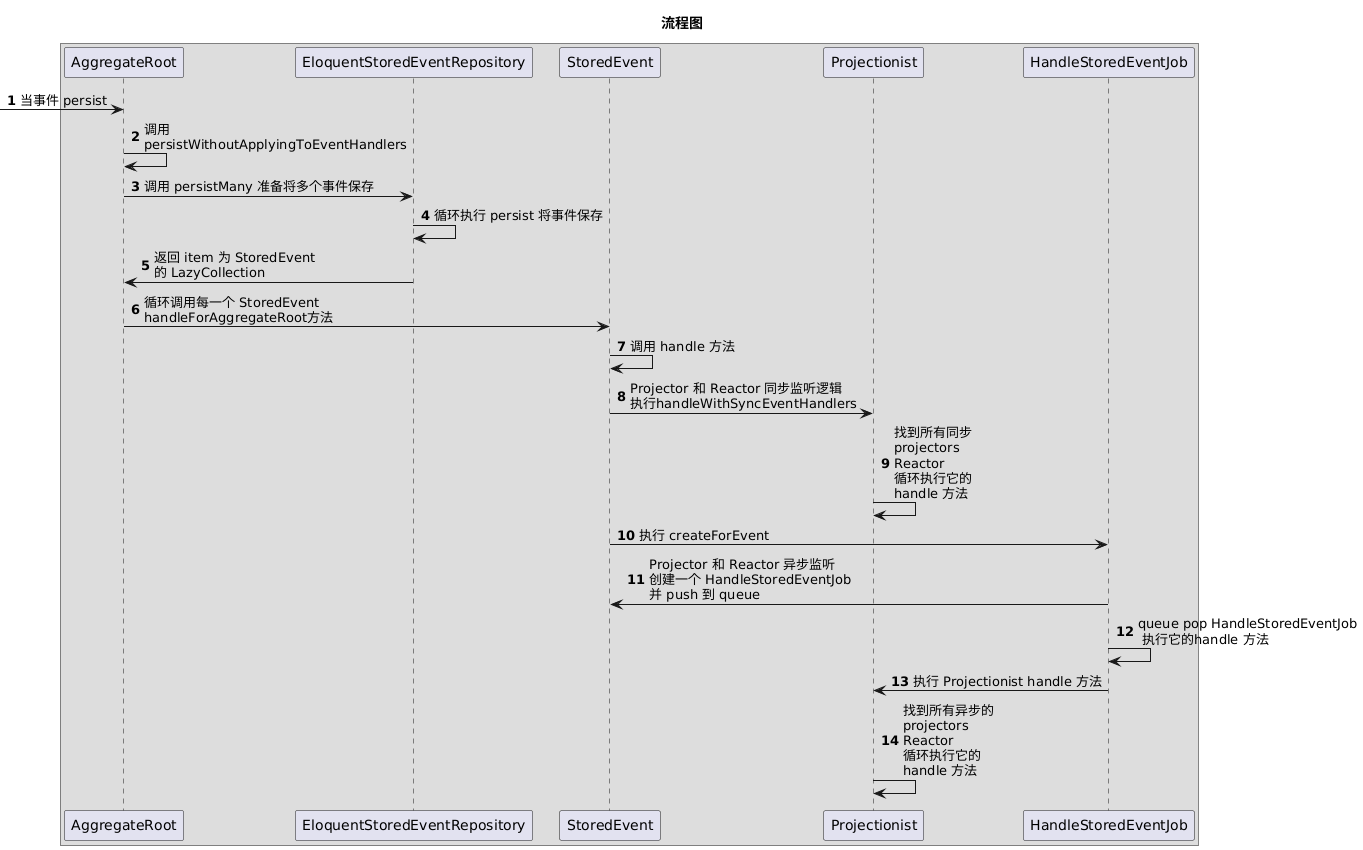

+## 流程图
+![](http://www.plantuml.com/plantuml/png/dPFVQXD15CRlzodE2_G5Sb4eKX5Ha5JmmjniaY4PsSwiixFYUXMjs8O6RRMAD2eKAfPYRK2KDD7qPNPcurjuajc4dUsc_hbPTcU_-SwPttT6KkaHqDyU9qVRgZjogloXuxj2qXhrNIPXfT4GfE5AKkPSMdzMFNu_94okIIv8VVK1lfQ9pmEAtv6bp2YizLk2toCrIJcZWVtdcilg7idikywh3c5rcBJdkA7aB5ol4k7SNLgsEeII-lag7cp7m-_W4n5CZ2t11JsCUnl9tX5KMAg_GsMJXtB5zxs8iiPjFct0T2I2lDkb5ERcgVLDbqMWDf-fmqtLm-T-t3yspSRdxzN9M-TIjpyKmwEeqN7o_5ItFuqFEhEQW9N-fOPrFZp0-PxgVW0goJh4_K4sIqIMx3-56-wZw0htF9DadazMNpBz6IRwz4NSRo60d6Lp2leg5vQHVdEclxvsCbBBUWxQx8QBSbXQjiODQQNVN81wsO4oSStxJaUVV4owkshdyw_MS3pQhJ13r7XFncCjOZLxAYplNAcIRe_KLa-tM_fTszZZiCsA1nMMbgwmR7xgomRIdV608W15jmHAQVmrGP0TSZJthaYRIsS1ZnzFvZommwsk6WxIu8eyKNA6LoyCce1d1foqa2meNjp-T0Vut5zW3rayDfpYCldOKpxsictqzsaQE9ES_Y_Gtm00)
+
+## 注意点
+[Laravel-Event-Sourcing](https://spatie.be/docs/laravel-event-sourcing/v4/introduction) 异步处理机制是判断监听当前事件的 Projector 和 Reactor 是否 `instanceof ShouldQueue`，如果比对有一个则将当前事件创建的 HandleStoredEventJob 推送到 queue。无论同步还是异步的执行。都是拿到监听这个事件的所有 Projector 和 Reactor。如案例中的 BookingCancelled，则循环执行所有  Projector 和 Reactor 的 onBookingCancelled 方法。代码如下：
+```php
+    private function applyStoredEventToProjectors(StoredEvent $storedEvent, Collection $projectors): void
+    {
+        $this->isProjecting = true;
+
+        foreach ($projectors as $projector) {
+            $this->callEventHandler($projector, $storedEvent);
+        }
+
+        $this->isProjecting = false;
+    }
+
+    private function applyStoredEventToReactors(StoredEvent $storedEvent, Collection $reactors): void
+    {
+        foreach ($reactors as $reactor) {
+            $this->callEventHandler($reactor, $storedEvent);
+        }
+    }
+
+    private function callEventHandler(EventHandler $eventHandler, StoredEvent $storedEvent): bool
+    {
+        try {
+            $eventHandler->handle($storedEvent);
+        } catch (Exception $exception) {
+            if (! $this->catchExceptions) {
+                throw $exception;
+            }
+
+            $eventHandler->handleException($exception);
+
+            event(new EventHandlerFailedHandlingEvent($eventHandler, $storedEvent, $exception));
+
+            return false;
+        }
+
+        return true;
+    }
+```
+如果我们不希望循环执行所有  Projector 和 Reactor 时候被中断,可以在 event-sourcing.php  配置文件的 catch_exceptions 设置为 true,然后在 Projector 和 Reactor 自定义 handleException 方法处理我们的异常。
